The Flame (FL) is a modern style single cut with the traditional yet subtly sleek body. The seamlessly smooth neck heel and the original body design offers superior comfort and balance unlike the traditional single cuts.

Flame Expert EFL-FM comes with Original FGN Tailpiece ''FJTP'' which has two ways of stringing.
Not only does it offer the Stop-Tail style but also the String-Through-Body style.

FGN FLAME EXPERT
EFL-HM
Heritage Darkburst

EFL_HM (HD)_22
EFL_HM (HD)_19
EFL_HM (HD)_24
EFL_HM (HD)_21
EFL_HM (HD)_02
EFL_HM (HD)_07
EFL_HM (HD)_20
EFL_HM (HD)_23
EFL_HM (HD)_26
EFL FM _ HD high resolution.jpg

FLAME EXPERT EFL-FM
SPECIFICATIONS


Made in Japan by Fujigen
since 1960

CONSTRUCTION : Set in Neck

BODY :
Hard Maple Top

African Mahogany Back


NECK : 1pc African Mahogany U-Shape
with Smooth Heel Joint and Natural Satin Finish



FINGERBOARD :
Indian Rosewood 305mmR



PARTS COLOR : Chrome


FRETS : 22F Jumbo
C.F.S.(Circle Fretting System)
Hand-filed Expert Fret Edge Treatment



SCALE : 24.75" (628mm)

CONTROLS : 1Vol, 1Tone, 3-Way Toggle Switch


PICKUPS : Original FGN with Alnico 2
Neck : FL-1n / Bridge: FL-1b


STRINGS : D'Addario EXL110 (.010-.046)

TUNERS : GOTOH® SG301-20

BRIDGE : GOTOH® GE104B
Brass Saddless



TAILPIECE : FGN Original FJTP
2-way stringing Brass Tailpiece



COLOR : Heritage Darkburst


FINISH : Gloss

ACCESSORIES :
Original Hard Case
Fret Guard
Fabric Cover
Setup Keys

FGN FLAME EFL-HM Demo by,

Rockland Music Germany

FLAME EXPERT EFL-HM
SPECIAL FEATURES

EFL_HM (HD)_07.jpg

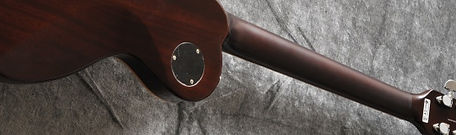

Natural Satin Finish Neck Back

Many people said the neck coated with gloss finish is very slippery and very difficult to hold it from sweating. We finally developed FGN original natural satin finish and it can make you feel very smooth and comfortable like the illusion of touching the natural wood. The original neck finish can improve your playability and the resonance from the neck to the body material.

Effortless Playability Low Setting Set Up

FGN's unique and original neck-joint system improves the overall resonance of the guitar. The angle of the neck and body joint is a critical factor in the set-up of a stringed instrument. While string height is adjustable at the bridge, FGN's neck-joint system not only improves the overall resonance of the guitar it also supports extra low string action.











Circle Fretting System

All FGN guitars and basses come with a unique Circle Fretting System (C.F.S.). It was created by FGN based on an idea to offer better pitch and articulation than conventional guitars and basses. All frets are installed on fingerboard in slightly curved shape, so that every string crosses all the frets in 90 degrees, i.e. to offer a minimum contact of string on a fret, and it makes the scale length of every string even while it actually varies on conventional fretting. The C.F.S. is a solution of fretting on a traditional guitar and bass and it offers clearer articulation and tones which give dimension when you play a cord and also cut through the mix when you play single notes.



*The frets we use aren't special. You can ask your nearest repair shop to hit them from the edge of the fingerboard when refret.





FGN Original Humbucker

Designed by Fujigen R&D section and manufactured by Japanese pickup craftsmen who have long experience and great skills. It's used Alnico 2 magnets and wax potted. The sound is like the original vintage P.A.F.s and persistently-mid high powerful sustains. Besides, it gives a very picking response and well-balanced sound between overdrive and clean sounds.

Fret Edge

FGN craftsmen are meticulous in ensuring fret ranges are rounded to perfection for a smooth feel on the neck. Position changes are seamless and aesthetic is flawless.

FJTP (Fujigen Tailpiece)

FGN original new versatile tailpiece "FJTP" has 2-ways of string-guide holes, String-Through-Body style and Stop-Tail style. While we'll apply the String-Through-Body style, we can feel super strong and tight sounds and amazing resonance even with the light gauge strings.

FRET EDGE 1.png
2 WAY ADJUSTABLE BRIDGE.jpg

Smooth Heel Neck Joint

Where most set-in neck guitars have a bulky, awkward heel, the FGN features a beautifully contoured neck joint to facilitate easy access to high register playing. Fearlessly cut neck joint without steps allows you to access higher frets easily.

EFL_HM (HD)_20.JPG

Z Axis Deep Joint

FGN has adopted and redeveloped the deep joint on set-in neck guitars to optimize the junction ares of the neck and body and increase overall guitar resonance. By setting neck about 1mm deeper than conventional electric guitars, we succeed to reduce the distance between the strings and the body top without forcibly lowering the strings height.
