''The next generation of set-in-neck guitar''

to make appropriate adjustments at all kinds of music.

NEW FLAGSHIP GUITAR

INHERITED FROM

RICH LEGACY

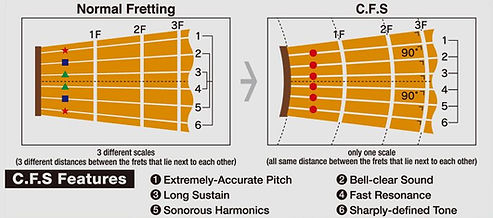

1 - Circle Fretting System (C.F.S.)

Slightly curved frets are mounted as each string and fret intersect at right angles to minimize the contact surface.
You can obtain accurate pitch, cleaner longer sustain and true harmonics.



*The frets we use aren't special. You can ask your nearest repair shop to hit them from the edge of the fingerboard when refret.



2 - Natural Satin Finish Neck Back

Many people said the neck coated with gloss finish is very slippery and very difficult to hold it from sweating. We finally developed FGN original natural satin finish and it can make you feel very smooth and comfortable like the illusion of touching the natural wood. The original neck finish can improve your playability and the resonance from the neck to the body material.

3 - Fret Edge

FGN craftsmen are meticulous in ensuring fret ranges are rounded to perfection for a smooth feel on the neck. Position changes are seamless and aesthetic is flawless.

4 - Smooth Heel Neck Joint (Expert)

Where most set-in neck guitars have a bulky, awkward heel, the FGN features a beautifully contoured neck joint to facilitate easy access to high register playing. Fearlessly cut neck joint without steps allows you to access higher frets easily.

5 - Z Axis Deep Joint (Expert)

FGN has adopted and redeveloped the deep joint on set-in neck guitars to optimize the junction ares of the neck and body and increase overall guitar resonance. By setting neck about 1mm deeper than conventional electric guitars, we succeed to reduce the distance between the strings and the body top without forcibly lowering the strings height.

6 - Effortless Playability Low Setting Set Up (L.S.S)

FGN's unique and original neck-joint system improves the overall resonance of the guitar. The angle of the neck and body joint is a critical factor in the set-up of a stringed instrument. While string height is adjustable at the bridge, FGN's neck-joint system not only improves the overall resonance of the guitar it also supports extra low string action.











7 - FGN Original Humbucker (FL)

Designed by Fujigen R&D section and manufactured by Japanese pickup craftsmen who have long experience and great skills. It's used Alnico 2 magnets and wax potted. The sound is like the original vintage P.A.F.s and persistently-mid high powerful sustains. Besides, it gives a very picking response and well-balanced sound between overdrive and clean sounds.

8 - FJTP (Fujigen Tailpiece)

FGN original new versatile tailpiece "FJTP" has 2-ways of string-guide holes, String-Through-Body style and Stop-Tail style. While we'll apply the String-Through-Body style, we can feel super strong and tight sounds and amazing resonance even with the light gauge strings.



Tone Pot w/Tap Switch (J-Standard)

Push/Pull Tap SW is installed on tone pot.

664mm Neck Scale (JFL-FT-ASH-DE664-M)

FGN original 664mm neck scale realizes exquisite tension, sound and playability even in Drop-C tuning for heavy sound.
*Factory Tuning: Drop-C (1D 2A 3F 4C 5G 6C)

NEW INNOVATION OF

EARLIER VERSIONS

''Multifunctional vintage guitar''

combined old and new technology for rock, blues and fusion style music.

1 - Circle Fretting System

Slightly curved frets mounted on the fingerboard are quite useful to enhance pitch accuracy, longer sustain, and true harmonics.



*The frets we use aren't special. You can ask your nearest repair shop to hit them from the edge of the fingerboard when refret.

2 - Fret Edge

FGN craftsmen are meticulous in ensuring fret edges are rounded to perfection for a smooth feel on the neck. Position changes are seamless and the aesthetic is flawless.

3 - Moonsault Heel Cutaway

The body heel, neck joint and plate are beautifully contoured to facilitate easy access to high register playing.

4 - Compound Radius

FGN employs a specific "Compound Radius" ratio on the fingerboard, representing advanced fingerboard technology. The neck radius gradually increases over the finger board's length, starting out rounded near the headstock and flattening out toward the neck joint. A diameter of 250mm (10") was selected for the radius at the nut for optimal comfort and grip for chords. A 350mm (14") radius at the heel has proven to be ideal in eliminating any unwanted buzz of string bending that may be caused by over-tightened fingerboard radius traditionally countered by high string action. The Compound Radius affords comfortable and easy bends even with string action below 1.9mm and ensures smooth fingering when playing solo passages high on the neck.

5 - Low setting set up (L.S.S)

6 - FGN original pickups (Expert Series)

Designed by Fujigen R&D section and manufactured by Japanese pickup craftsmen who have long experience and great skills. For single pickup, it's used Alnico 5 magnets. The sound is like the mixture of vintage tone in 1960 and modern powerful sustain. We cut the high-tone frequency which has harsh sounds to the ear, and boosted mid-high power range. Besides, it gives a very quick picking response and very useful for blues, fusion, rock, and shred style guitar players. For humbucker pickup, it's used Alnico 2 magnets. The sound is like presistently-mid high powerful tone and goes quite well with our FGN orignal single pickups above mentioned. It also reprises vintage bright and very unique fat sustain tones.

7 - Gotoh 510TS Bridge (Expert Series)

The combination of the 510TS and L.S.S.(5) makes clean sound and tight vintage tensions for all guitar players.

8 - Double Trickey Switch

Neck side SW : Humbucker Direct Out Bridge side SW : Coil Tap Function The mini toggle switch mounted between the volume and tone control knobs allowes for split-coil and direct-out on the bridge humbucker. With the coil tap switch(bridge side), spanning the gap between a more distorted humbucker or a clean sounding single-coil tone. With the direct-out switch(neck side), you'll always leave it if you'd like to to keep playing with a powerful distortion sound.

''Vintage looking, easy body fitting and great playability guitar''

with our original body construction.

A BLEND OF

VINTAGE TONE AND

NEW TECHNOLOGY

1 - Circle Fretting System (proprietary system)

Slightly curved frets mounted on the fingerboard are quite useful to enhance pitch accuracy, longer sustain, and true harmonics.

*The frets we use aren't special. You can ask your nearest repair shop to hit them from the edge of the fingerboard when refret.

2 - Fret Edge

FGN craftsmen are meticulous in ensuring fret edges are rounded to perfection for a smooth feel on the neck. Position changes are seamless and the aesthetic is flawless.

3 - FGN original pickups

Designed by Fujigen R&D section and manufactured by Japanese pickup craftsmen who have long experience and great skills. It’s used Alnico 3 pole pieces for HP and well-balanced P90 for SP models, and excellent with semi hollow guitars. The sound character is very clean and also good and very useful for making crunch and rock’n roll sounds, as the pickups sounds and constructions are directly transmitted into the body materials.

4 - Precise-Hollow Body Special Construction

The rim and inner block scooped out from solid mahogany. This new technology was developed by calculating the strength, sounds, and weight very carefully.

5 - 15 Inch Original Fitting Body

We reviewed and designed the 15 inch body, a bit smaller than 335 specially for modern humans physical constitution. Also this model is less than 3kgs, so the playability is effortless.

''Universal beautiful acoustic guitar''

for rock'n roll, blues,classic and jazz music

A BLEND OF

VINTAGE TONE AND

NEW TECHNOLOGY

1 - Circle Fretting System (proprietary system)

Slightly curved frets mounted on the fingerboard are quite useful to enhance pitch accuracy, longer sustain, and true harmonics.

*The frets we use aren't special. You can ask your nearest repair shop to hit them from the edge of the fingerboard when refret.

3 - 5 Ply Neck Construction

We apply the 5ply neck construction for each model. The neck of MFA-FP is sandwiched in maple and mahoganies, and also one of MFA-HH, it is sandwiched in walnuts and mahoganies. Both of them increase in the strength of the neck and enhances the resonance.

2 - Fret Edge

FGN craftsmen are meticulous in ensuring fret edges are rounded to perfection for a smooth feel on the neck. Position changes are seamless and the aesthetic is flawless.

4 - FGN original pickups

Designed by Fujigen R&D section and manufactured by Japanese pickup craftsmen who have long experience and great skills. It’s used classy looking FGN FMH mini humbucker for FP and FGN HF for HH. For the FP models, we can create very unique and wide variey sounds with the push/pull switch on the tone wood knob. The tone of MFA series is not only suitable for jazz, country and classic music, but also for some kinds of rock music.

5 - Coil Tab Swith (MFA-FP)

The switch system is mounted on MFA-FP model only. With the coil tab switch on the tone knob, we can create wide variety of sounds and different genres of music; Jazz, Rock, Blues etc.

''New Modern Electric Bass''

with super tight tention and clear tone and powerful low EQ sound.

1 - Circle Fretting System

Slightly curved frets mounted on the fingerboard are quite useful to enhance pitch accuracy, longer sustain, and true harmonics.

*The frets we use aren't special. You can ask your nearest repair shop to hit them from the edge of the fingerboard when refret.

2 - Fret Edge

FGN craftsmen are meticulous in ensuring fret edges are rounded to perfection for a smooth feel on the neck. Position changes are seamless and the aesthetic is flawless. FUJIGEN craftsman's handmade fret edge contributes to much smoother fingering.

3 - FGBB (2-way adjustable bridge)

2-Way adjustable Bridge has two ways of string-guide holes, String-Through-Body style and Stop-Tail style. While we'll apply the String-Through-Body style, we can feel super strong and tight sounds and amazing resonance even with the light gauge strings.

4 - Tone Pot w/Series Switch

Push/Pull Pallarel/Series SW is installed on tone pot.

The modified versions of some historical guitar brands, FGN J(Japan)-Standard series provides a greater range of potential and playability to fit for the modern age and all kinds of musicians who require new original design and special modified features.
We reviewed old design concepts according to our long experience and created the J-Standard series with high quality parts and wood materials carefully selected by our craftmen from FUJIGEN, Japan.

1 - Circle Fretting System

Slightly curved frets mounted on the fingerboard are quite useful to enhance pitch accuracy, longer sustain, and true harmonics.

*The frets we use aren't special. You can ask your nearest repair shop to hit them from the edge of the fingerboard when refret.

2 - Natural Satin Neck
Many people said the neck coated with gloss finish is very slippery and very difficult to hold it from sweating.
We finally developed FGN original natural satin finish and it can make you feel very smooth and comfortable like the illusion of touching the natural wood.

The original neck finish can improve your playability and the resonance from the neck to the body material.

3 - J-Standard Smooth Fret Edge

FGN craftmen are meticulous in ensuring J-Standard Smooth Fret Edges are rounded to perfection for a smooth feel on the neck, Position changes are seamless and the aesthetic is flawless.

4 - 3&6 saddle-bridge (JIL)

We set up with vintage 3-saddle "Ash Tray" style bridge and 6-saddle bridge depending on all musician's intended use.
All bridge have adjustable saddle for string height, radius, and intonation.

5 - Coil Tap Switch (JOS)

With the coil tap switch between the volume and tone control knob allows for split-coil tap on the bridge humbucker.

6 - FJTP (JFL / JMY-R / JMY7-R)

"FJTP" String-Through-Body Stile makes you feel amazing strong sounds and great resonance from all sides of the whole body through the interface between bridge + FJTP parts and body wood material.

7 - 2-Way Adjustable Bridge (JMJ)

2-Way adjuntable Bridge has two ways of string-guide holes, String-Through-Body style and Stop-Tail style.
While we'll apply the String-Through-Body style, we can feel super strong and tight sounds and amazing resonance even with the light gauge strings.
